Apollo 3D: Command Module and Service Module Block 2 Staff Pick

  • June 08, 2012
  • 1,026 Downloads
  • 7 Likes
  • Blender 2.6x
  • Render: Blender Internal
  • Creator: mesapilgrim
  • License: CC-BY
You must be logged in to download.

Description:

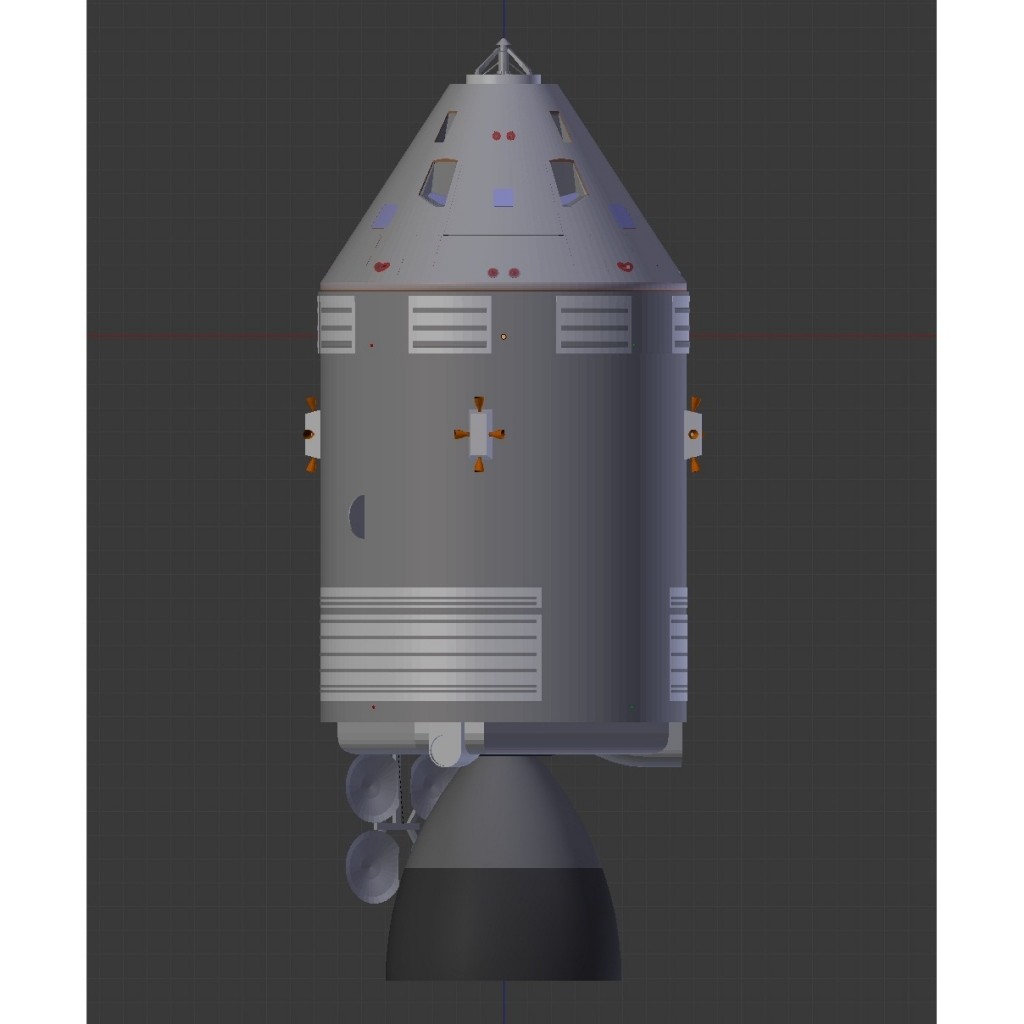

The Apollo Command Module (CM) and Service Module (SM) carried American astronauts to the moon on 7 mission (Apollo 11 to 17) from July 1969 to December 1972. I thought the best way to appreciate and understand their accomplishment was to build an accurate model showing the design. A free Apollo model might inspire some kids to take on space engineering (and Blender) too :)

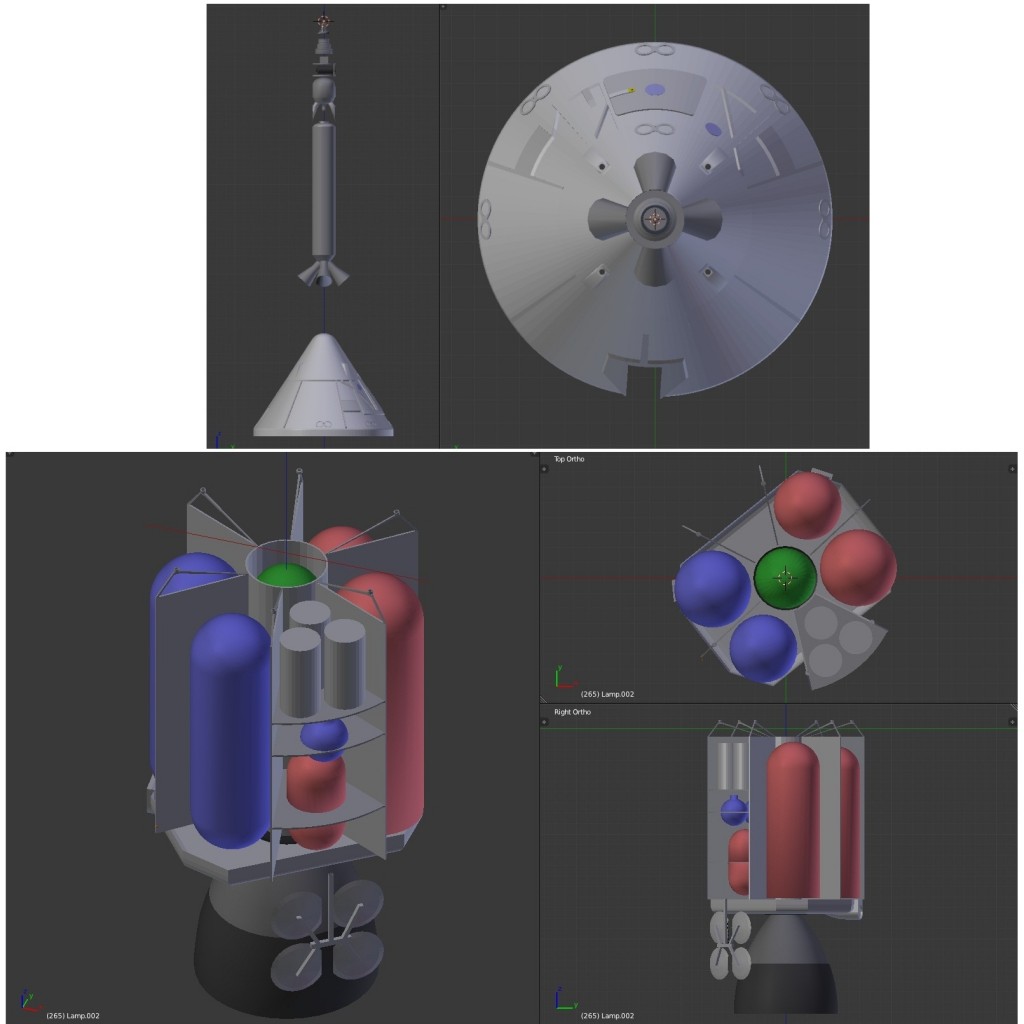

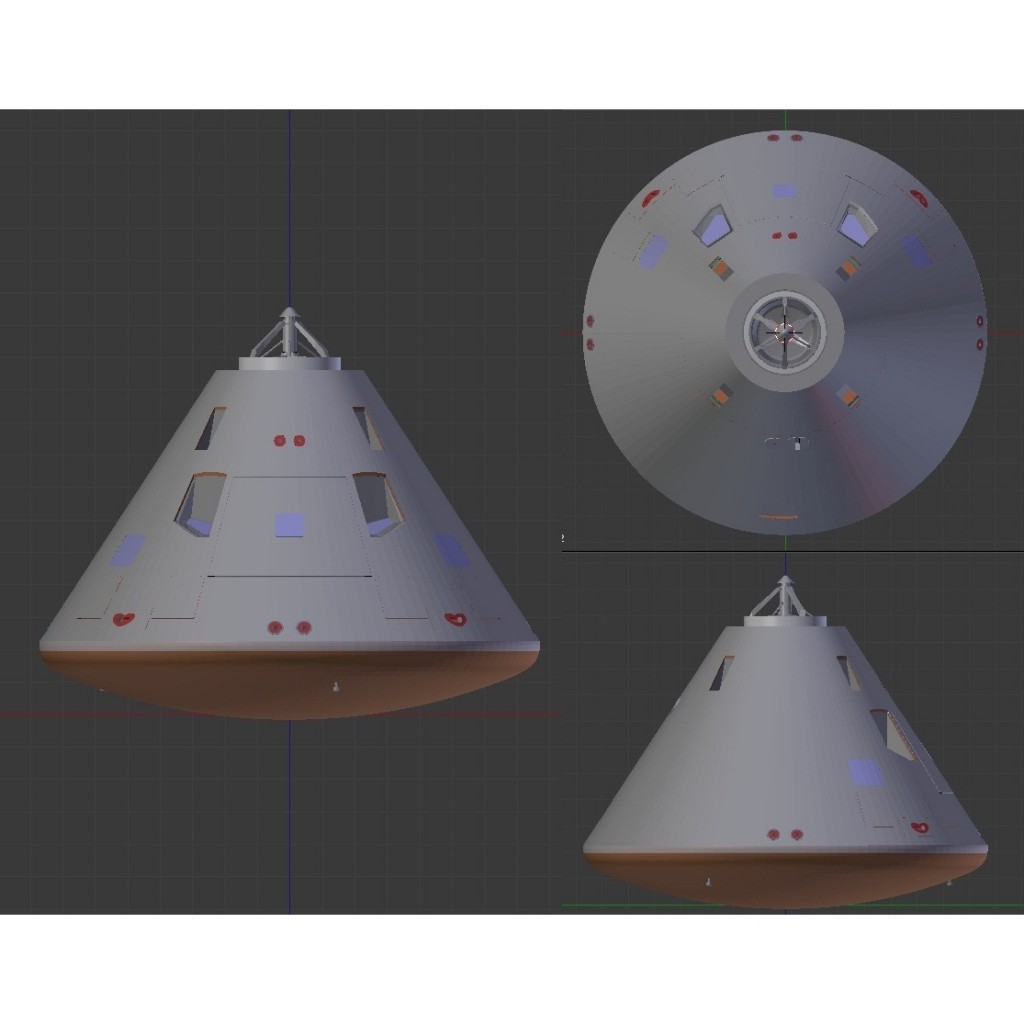

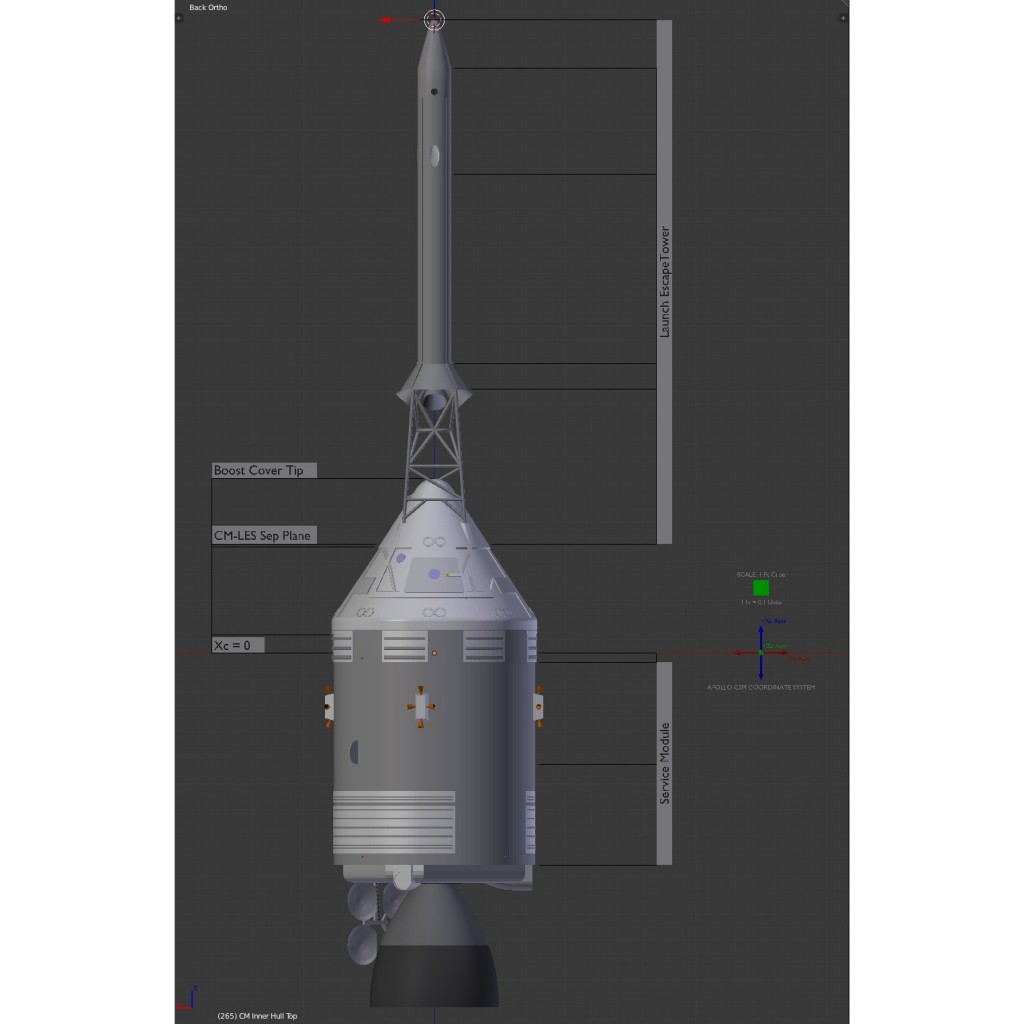

This is a departure from the standard Blender modeling approach of "only model what shows up in the rendering", and uses Blender as more of a Computer Aided Design (CAD) tool. I found that Blender works great for precision CAD as well as the hundred other ways folks use it. This Apollo 3D model shows dimensionally accurate CM hull layers, interior and exterior features at scale 10 inches = 1 Blender unit. Major components of the SM, as well as the Boost Protection Cover (BPC) and Launch Escape System (LES) are included as well. Primary references were the "NASA Apollo CM News Reference" (314 pages), and the "Apollo Operations Handbook, Block II Spacecraft" (978 pages). Also very helpful were Scott Lowther's excellent technical references (on Up-Ship.com), and David Weeks technical drawings (on realspacemodels.com). Finally, thanks to Mr. David Christensen and the Apollo/Saturn Archive at the University of Alabama, Huntsville for source material on the Apollo CM interior.

I hope to continue refining the models with complete interior, exterior and layers, accurate to +/- 0.5 inch, accurate color and material finish. Any partners would be welcome. I'm also working on other Apollo program component models in my free time. Thanks for your interest and any feedback.
