Rope Wrapping file problem

  • September 09, 2020
  • 14 Downloads
  • 0 Likes
  • Blender 2.8x
  • Render: Cycles
  • Creator: artmajor1
  • License: CC-BY
You must be logged in to download.

Description:

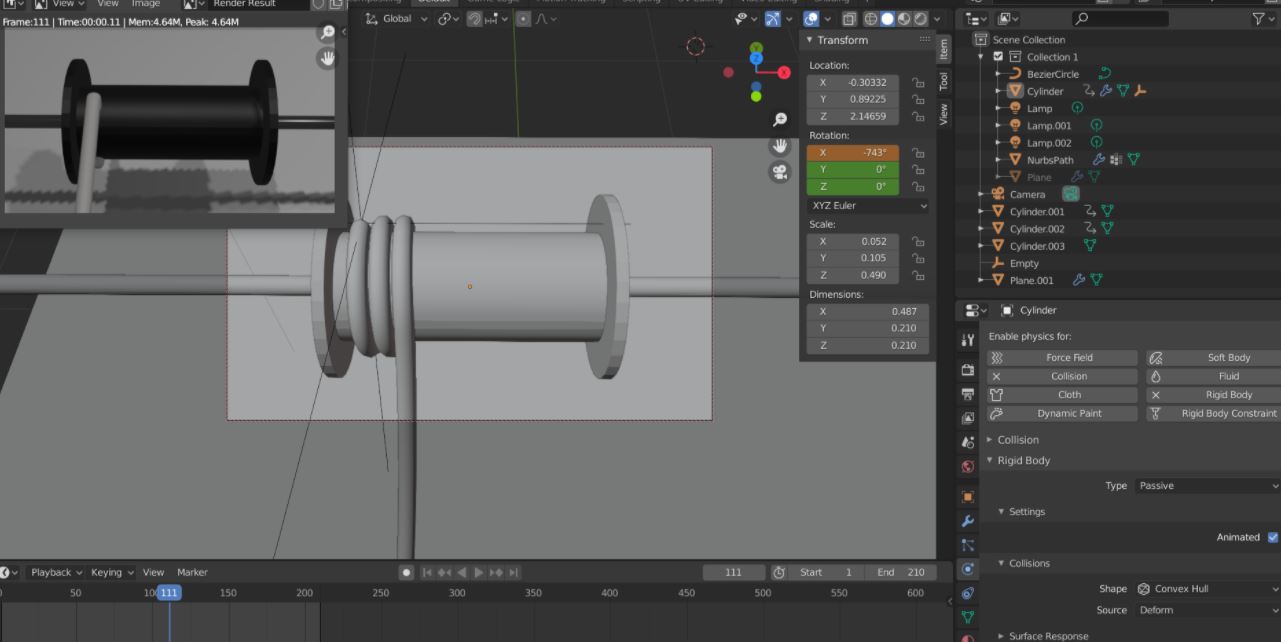

I need this rope to continue wrapping after 250 frames - and be able to render properly.

Comments:

  • holyolie profile picture
    holyolie

    Here's a solution:

    Step 1. Raise the value of the End frame (to increase the duration of the animation). The default value is 250. Raise it to e.g. 500.

    Step 2. Increase the duration of rotation of Cylinder. Select object 'Cylinder'. Change the current view to Graph Editor. Press [Home] to center the view. Press [A] in the Graph Editor to select all vertices. In the menu of the Graph Editor go to [Channel]-[Extrapolation Mode] and select [Lineair Extrapolation]. The curves will be alongated.

    Step 3. Raise the cache of the rope. Select the rope (Nurbspath) and move to the Physics properties in the properties window. Within the section [Cache] raise the value [End] to a higher value (e.g. 500).

    Step 4. Move to the first frame and run the animation.

    Succes

    Written September 16, 2020
