Description:

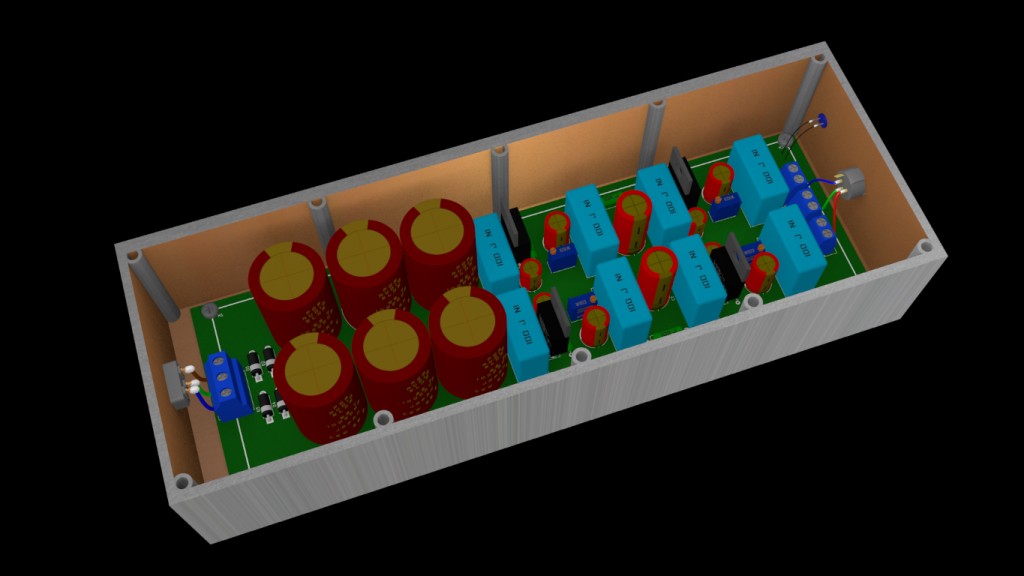

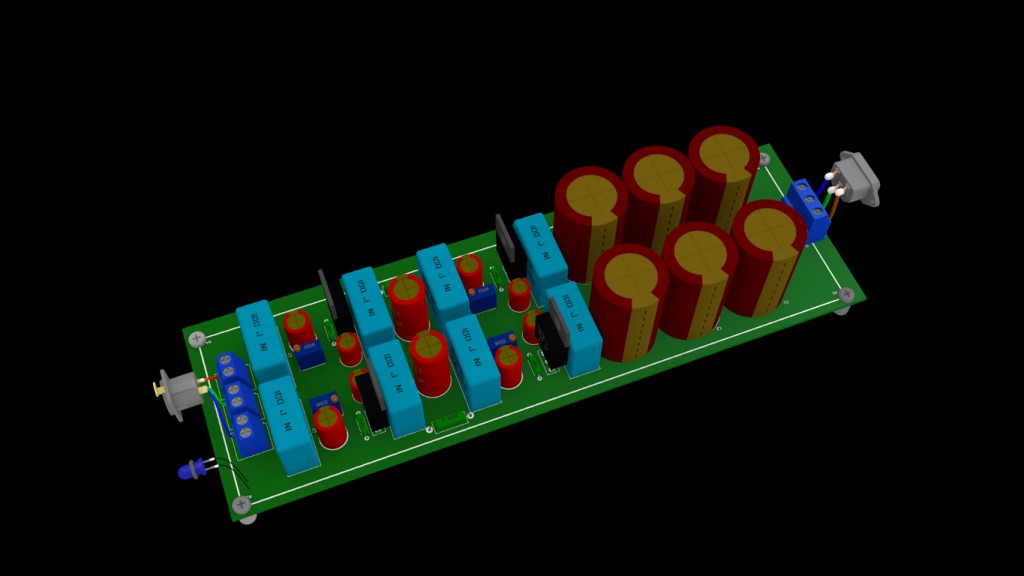

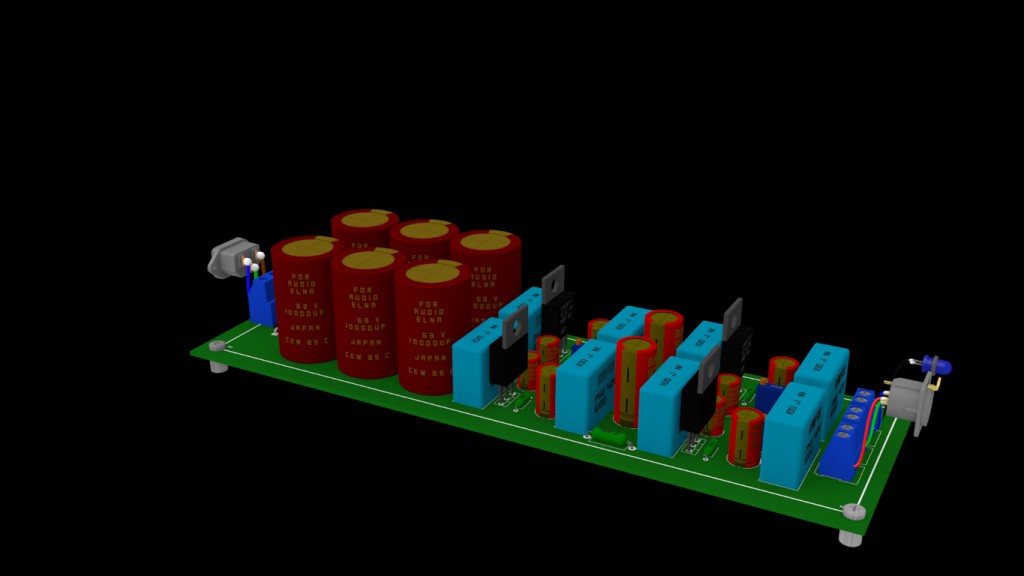

This is a general hi-end power supply ( psu+enclosure ) for audio use. I have been involved in this project 2 years ago. It started as a Kicad project, and it's over as a Blender one. Pcb layout made in Kicad and export wrl files which Blender can handle.After that in Blender i made all the components and some pcb fixings.The result was a 3d presentation of full cirquit and enclosure stracture. More photos and info at https://imgur.com/gallery/nCMRYcK
