Mapping Nodes for Cycles (Node groups + OSL)

  • December 11, 2013
  • 255 Downloads
  • 0 Likes
  • Blender 2.6x
  • Render: Cycles
  • Creator: ChrisH
  • License: CC-0
You must be logged in to download.

Description:

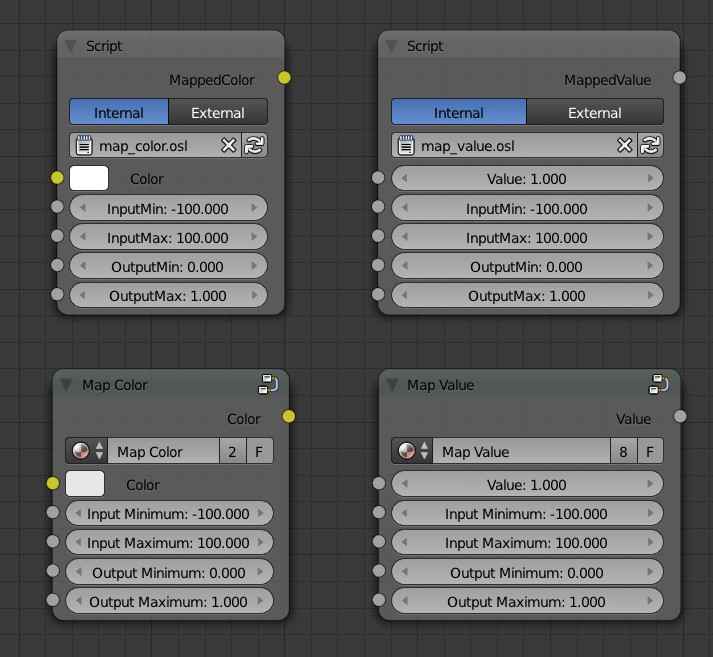

Four simple nodes that allow you to map (or reverse) values and vectors/colors. The two main "functions" are "Map value" and "Map color" (i.e. vector or "triplet values") and those exist in two versions: node groups and OSL scripts.

This can be usefull when you want to map the location from the object/particle info node etc. You can see an example of with and without mapping of location values in the preview images.

In the file there's a usage example with a particle system and a node tree where each of the nodes are represented.Usage tips:

<ol><li>If you're mapping locations make the Min &amp; Max of the input the range in Blender Units(/meters) match the locations of the objects/particles (if your objects can be find from -42 to 42 BU on an axis, enter that as your Input Min &amp; Max).</li>

<li>If there's a big difference on the range where the objects are from one axis to another, you might want to use a Seperate RGB on the Location, run each value (RGB = XYZ) through it's own Map Value node and then use Combine RGB (this also allows you to swap axis etc). You could also use a HSV-convert instead!</li>

<li>The uses are not limited to locations (but that's what I wanted it primary for!)</li>

</ol>The OSL scripts are included in the .blend but can also be downloaded as seperate files here (since BlendSwap didn't allow the .OSL-files in the .ZIP).

Side note: There's a built-in node like this in the compositor, but sadly not one for Cycles (hopefully that will be added in the future [for better performance]). All "mapping" nodes in Cycles (like Vector &gt; Mapping) wont map the values like this, instead it clips the values.
